TB14
Corriente：Scooter Categoría：2015-2-5

Description Item Parameter Remarks


 Size 1750*650*1080mm 　
　 Brake type (Front / Rear) F:Disk / R:Durm 　
　 Wheelbase 1250mm 　
Item No.: Cushion height 950mm 　
TB14 Ground  clearance 140mm 　

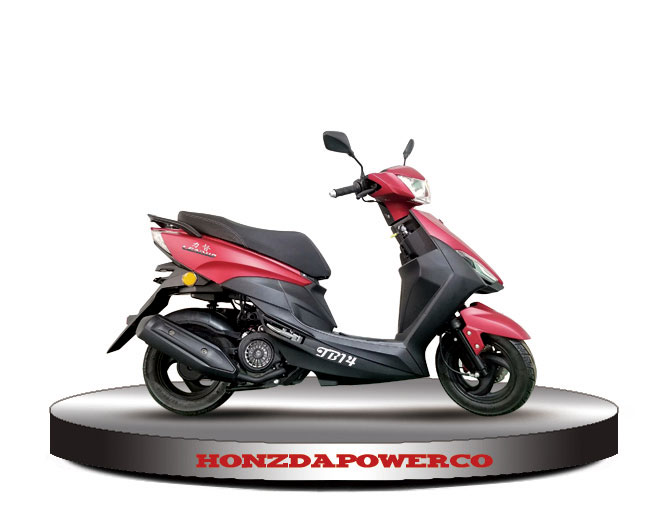

125CC SCOOTER Curb weight 95kg 　
　 Engine model GY6-125 　
Maximum speed 88km/h 　
Starting mode Electric+Kick Starting 　
Maximum power 5.2KW/7500rpm±500rpm 　
Maximum torque 7.5N.M/6000rpm±500rpm 　
Bore & Stroke 52.4X57.8mm 　
Compression ratio 9.2:1 　
Ignition & Oil supply mode CDI&Carburetor 　
Fuel tank volume 4L 　
Wheel type (Front / Rear) Aluminum 　
Front wheel specification 90/90-10 　
Real wheel specification 90/90-10 96 sets/40'HQ in SKD
