| Description |
Item |
Parameter |
|
Size |
1960*770*1130mm |
| ،، |
Brake type (Front / Rear) |
F:220mm R:160mm Disc Brake |
| ،، |
Wheelbase |
1370mm |
| Item No.: |
Cushion height |
760mm |
| TB20 |
Ground clearance |
190mm |

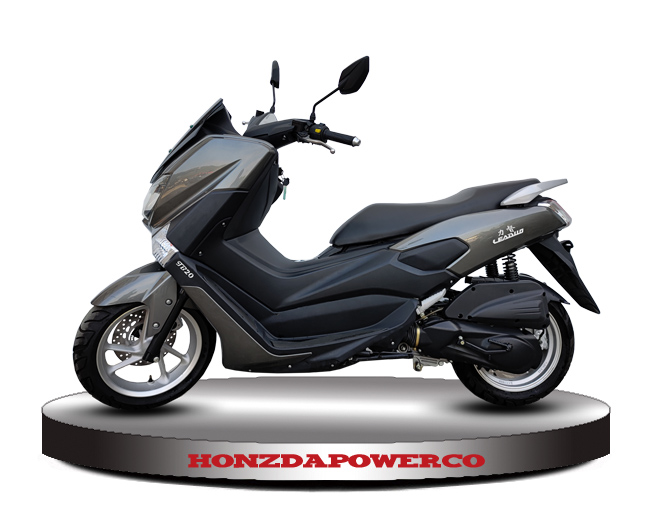

| 150CC SCOOTER |
Curb weight |
108kg |
| ،، |
Engine model |
HZD150 |
| Maximum speed |
92km/h |
| Starting mode |
Electric+Kick Starting |
| Maximum power |
6.1KW/7500rpm،ہ500rpm |
| Maximum torque |
9.3N.M/6000rpm،ہ500rpm |
| Bore & Stroke |
57.4X57.8mm |
| Compression ratio |
9.2:1 |
| Ignition & Oil supply mode |
CDI&Carburetor |
| Fuel tank volume |
7.5L |
| Wheel type (Front / Rear) |
Aluminum |
| Front wheel specification |
130/60-13 |
| Real wheel specification |
130/60-13 |
